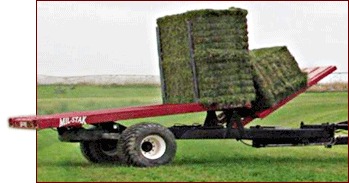

With the Mil-Stak PT/2150T large bale stacker you can single-handedly load and stack up to 120 large square bales per hour from the comfort of your tractor cab. It is easy to operate and designed to withstand years of use in demanding conditions. The PT/2150T is built with the same quality and backed by the same service you have come to expect from Mil-Stak.





The PT/2150T picks up bales the same direction as your baler places them in the field by clamping the sides of the bale, eliminating the need to drive cross-wise through the field or slide bales on the ground into position. The spring loaded bumper takes the shock out of non-stop loading and is easily adjusted for various bale lengths. The PT/2150T gets the bales off the ground quickly for fast, non-stop loading, reducing the amount of time the bales slide on the ground embedding dirt and debris into your hay. The specially designed cushion valve gently places bales onto the receiving table. Rolling forks stabilize the bales on the bed while loading, creating a tight uniform stack.



The single axle with large flotation tires easily carries the load over any type of ground and does not damage the hay when making tight turns. A swinging hitch gives the operator unmatched control for loading bales in any situation which makes it easy to get out of corners and from under wheel lines or pivots. It also gives the operator a clear view along the side of the stack when unloading making it easy to keep a straight uniform stack.



The PT/2150T is fully computerized! The easy to use joystick and display are mounted in the tractor cab which allows automatic loading and stacking of your big bales. The operator only has to clamp the bale and the computer does the rest.











Specifications:
Recommended minimum tractor size	150 HP
Minimum hydraulic GPM	18 GPM
Maximum hydraulic pressure from tractor	3,000 PSI
Clamping and lifting cylinders pressure	2,000 PSI
Electrical system	12 volt
Bale length	7 to 9 ft.
Bale weight	Up to 2,200 lbs.
Bale sizes	3x3, 3x4, 4x4
Quantity of bales per load	Up to 18-3x3, 12-3x4, 8-4x4
Bales stacked per hour	Up to 120
Bale wagon weight, empty	15, 150 lbs.
Length	34' 10"
Width (to outside of tires)	9' 7"
Height (empty)	12' 10"
Height (loaded)	14'
Recommended shed height for stacking	22 ft.
Tire size	High Flotation, 700/50-22.5 16 ply
Single axle capacity	44,000 lbs.
Tongue weight, empty	2,800 lbs.
Tongue weight, fully loaded	2,800 lbs.
Torque weight, unloading	-1,700 lbs.

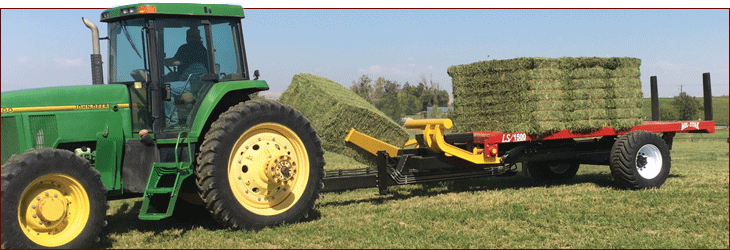

With the Mil-Stak LS/1850 Large Bale Stacker you can single-handedly load and stack up to 70 large square bales per hour from the comfort of your tractor cab. It is easy to operate and designed to withstand years of use in demanding conditions. The low profile and load holding ability makes it superior in loading bales on steep hillsides.





The LS/1850 picks up bales the same direction as your baler places them in the field by clamping the sides of the bale, eliminating the need to drive cross-wise or slide the bales on the ground into position. The spring loaded bale bumper takes the shock out of non-stop loading and is easily adjusted for various bale lengths. It quickly lifts the bales off the ground to keep from embedding dirt and debris into your hay and also does not damage the crop by excessive sliding or twisting of the bale across the field. Bales are placed cross-wise on the front of the stack bed and the hydraulic push-bar slides the bales back. The push-bar then stays in the up position until the next bale is loaded.



The Mil-Stak LS/1850 is easy to operate. It has no computer or sensors. There is no joystick or display to mount in the tractor cab. Just plug in six hoses, connect the tail lights plug and you’re ready to stack. The simple hydraulic design allows the operator to clamp, lift and slide the bales onto the stack bed with one tractor remote. The second tractor remote is used to swing the hitch to align with the bales while loading or to side shift to the right to see the stack while unloading. The third tractor remote is to lift the stack bed for unloading. The single axle with large flotation tires easily carries the load over any type of ground and does not damage the hay when making tight turns. The Mil-Stak LS/1850 comes standard with LED lighting making it easily seen when traveling between fields.





Specifications:
Recommended minimum tractor size	100 HP
Minimum tractor hydraulic GPM	15-18 GPM
Minimum tractor hydraulic pressure	2,000 PSI
Tractor hydraulic system	3 SCVs
Electrical system	12 volt negative ground
Bale length	7 to 9 ft.
Bale weight	Up to 2,200 lbs.
Bale sizes	3x3, 3x4, 4x4
Quantity of bales per load	6-3x3, 6-3x4, or 4-4x4
Bales stacked per hour	Up to 70
Bale wagon weight, empty	8,740lbs.
Length	27’-10”
Width (to outside of tires)	10’-0”
Height (loaded)	8' 4"
Recommended shed height for stacking	22 ft.
Tire size	Flotation type, 550/450-22.5, 16 ply
Single axle capacity	24,000 lbs.
Approx. tongue weight	Empty: 1,940lbs.
	Fully Loaded: 2,420 lbs. Unloading: -350 lbs.
