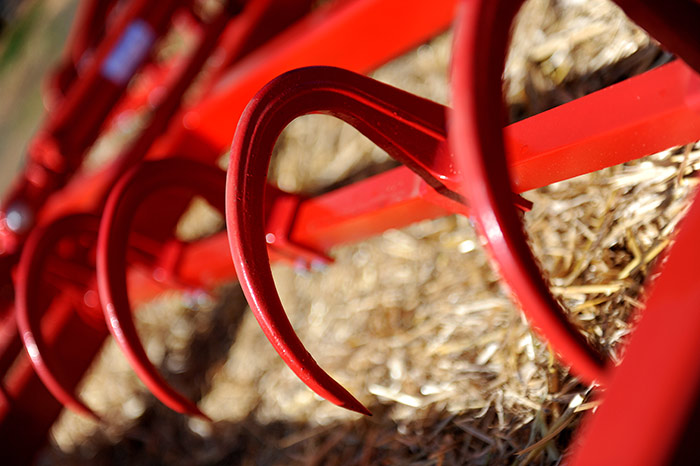

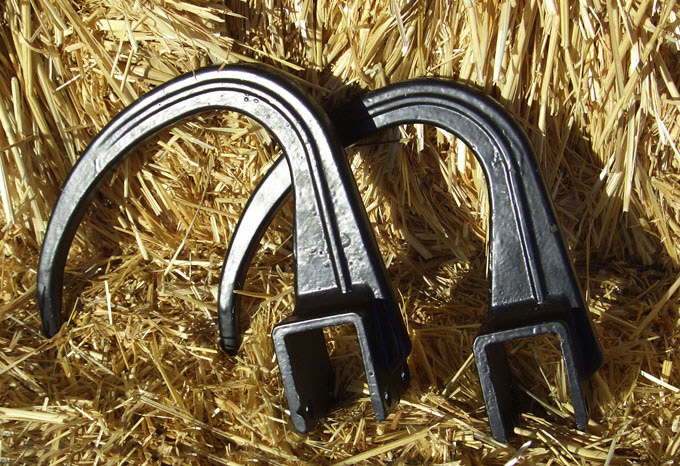

The Tenpack Bale Grabs are the toughest, longest lasting units available. The robust steel frame means that a Tenpack Grab has much thicker walled steel than other brands, ensuring you are purchasing a superior quality product. The unique, opposing spring steel teeth work like a claw, having the strength to curve deep into the tightest bales, whilst still effortlessly gripping even your softest hay. All grabs readily mount to a variety of loaders and require only one hydraulic remote to operate the teeth. The Tenpack Bale Grabs are sold without loader attachments or hydraulic hoses so the purchaser can custom fit the grab to suit their own application.

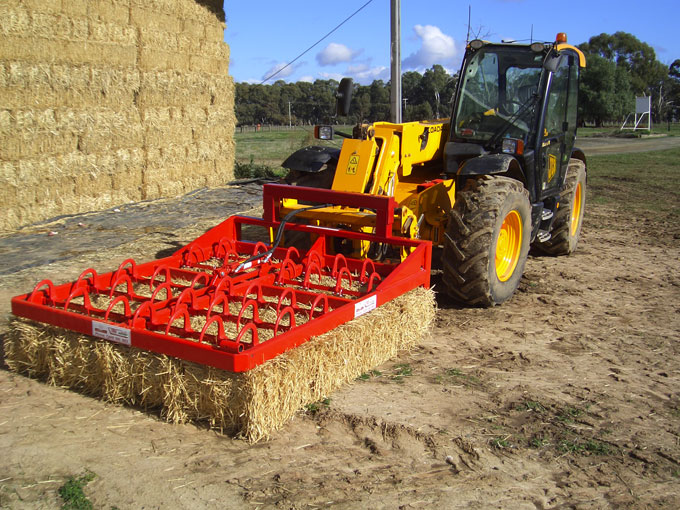

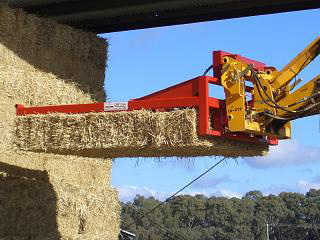

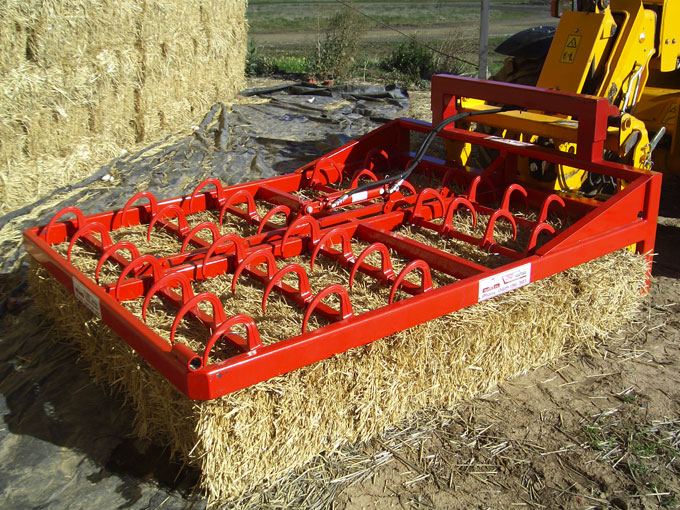

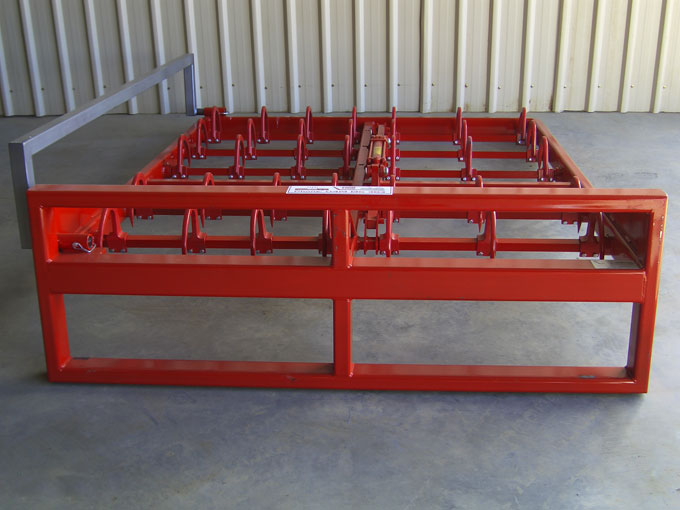

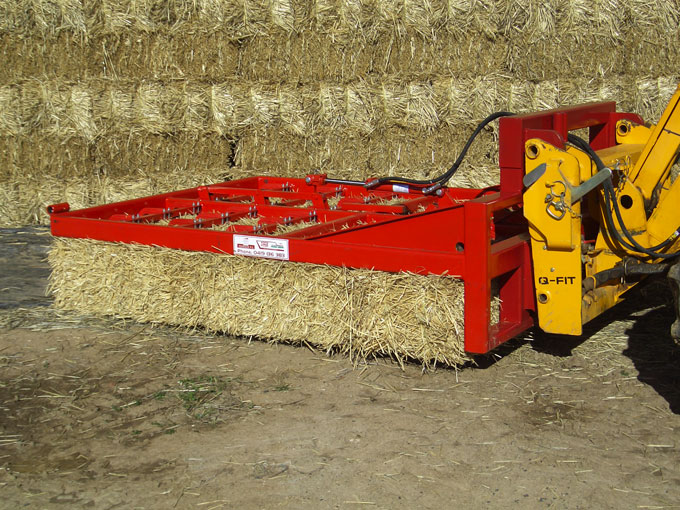

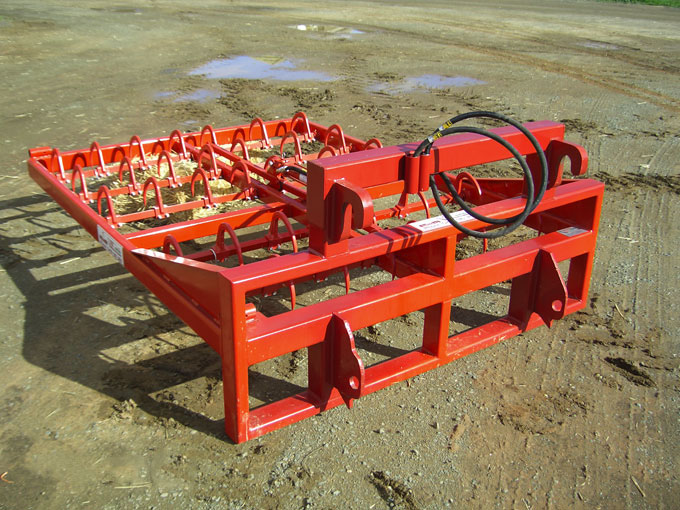

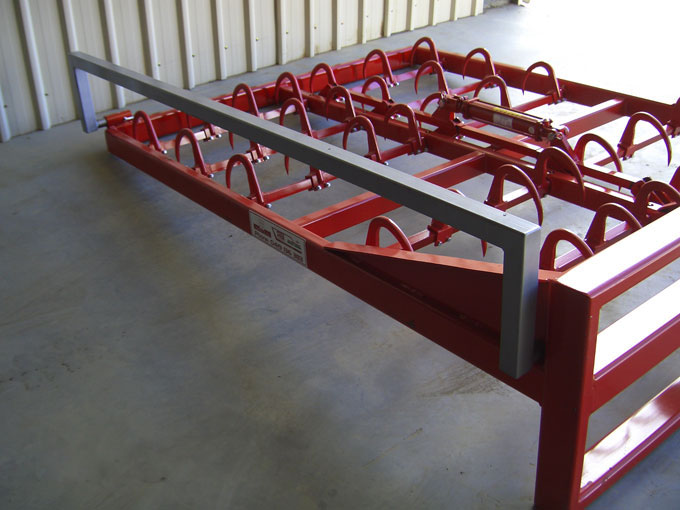

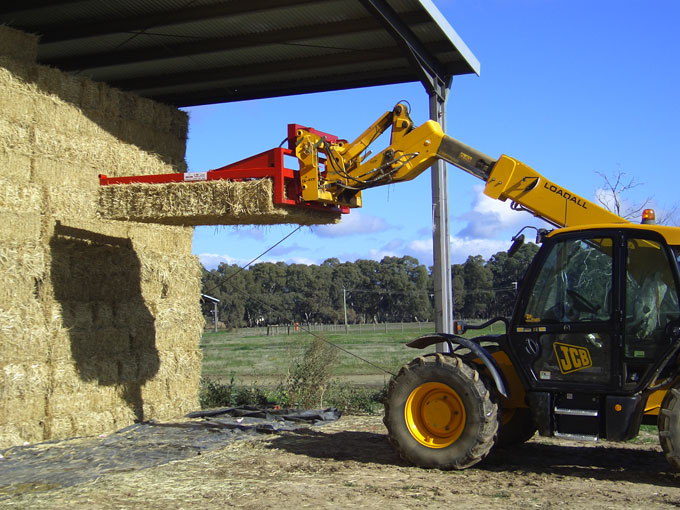

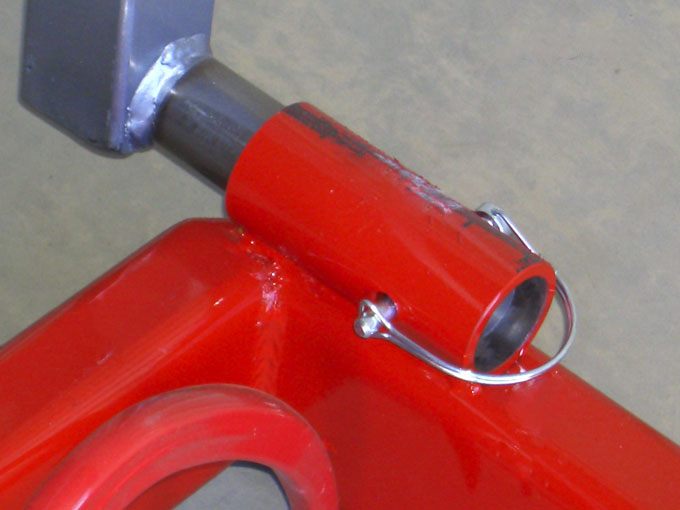

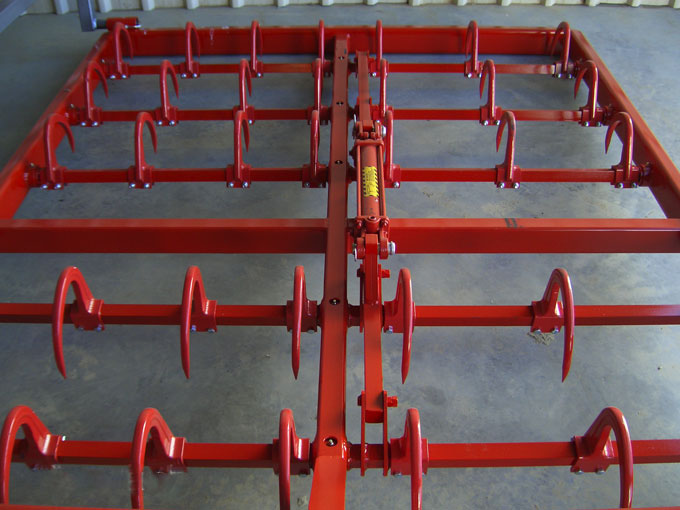

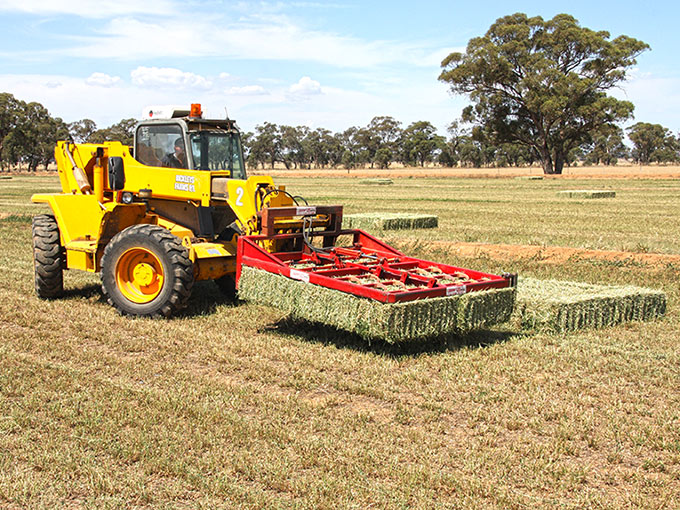

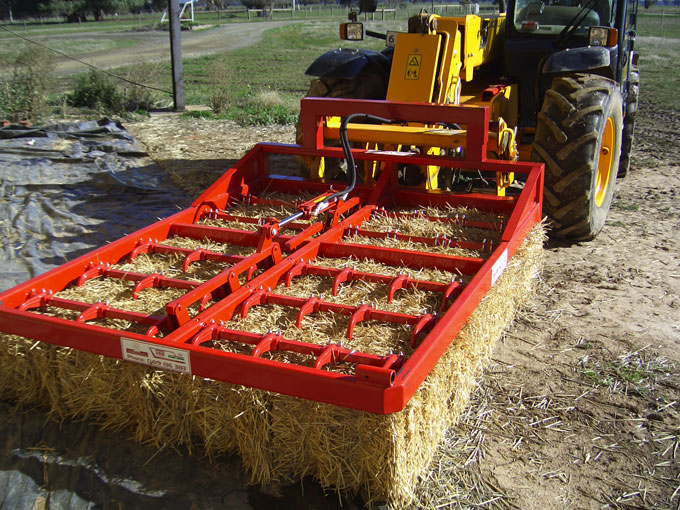

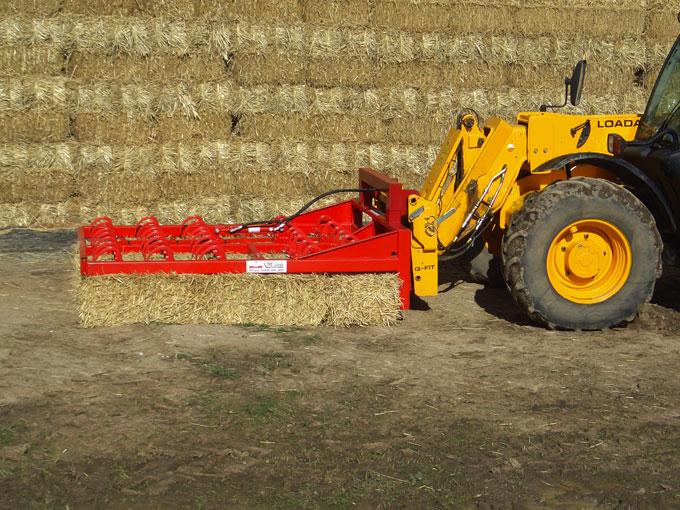

The 10 Bale is used in conjunction with the model 950, 10 Bale accumulator. The side guide arm simply locks into position for paddock work via the use of two snap pins, or can simply be removed or locked in the “up” position for shed or warehouse use.



Dimensions:


Overall width 1920mm (side guide arm down)
Overall length 2450mm
Overall height 610mm (side guide arm down)
Weight  360kgs

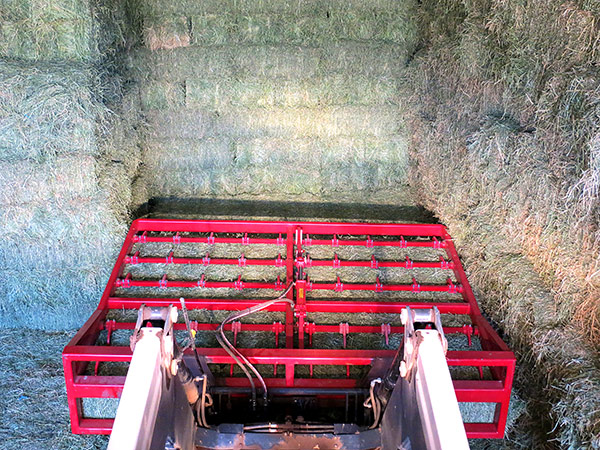

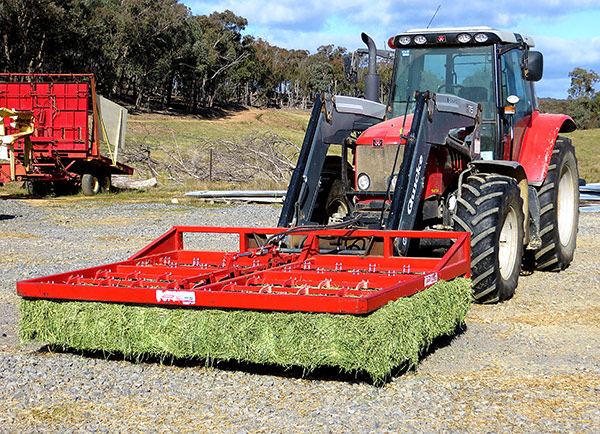

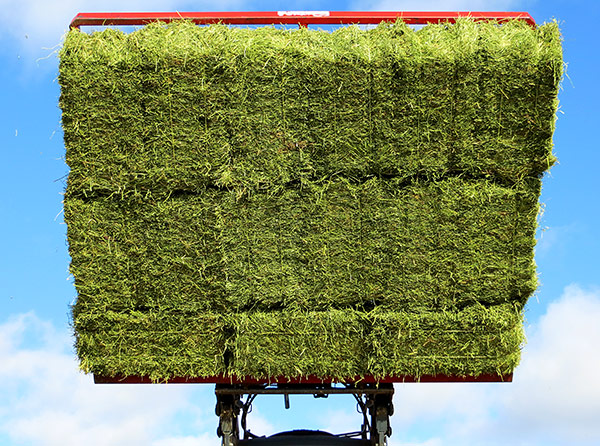

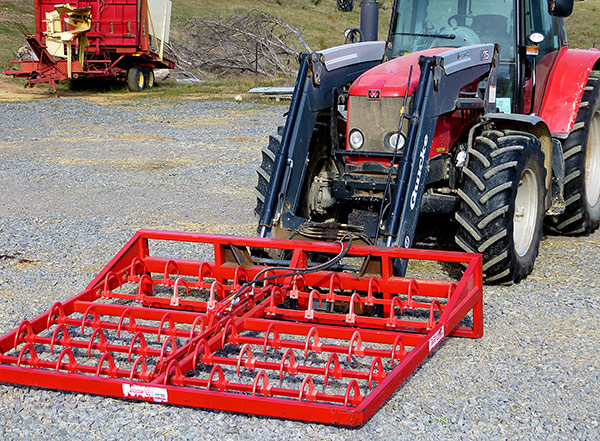

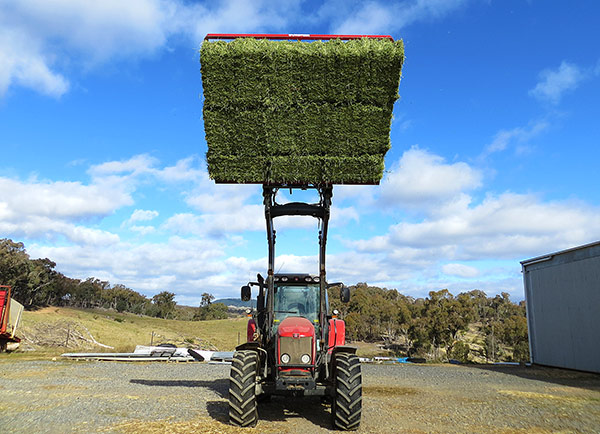

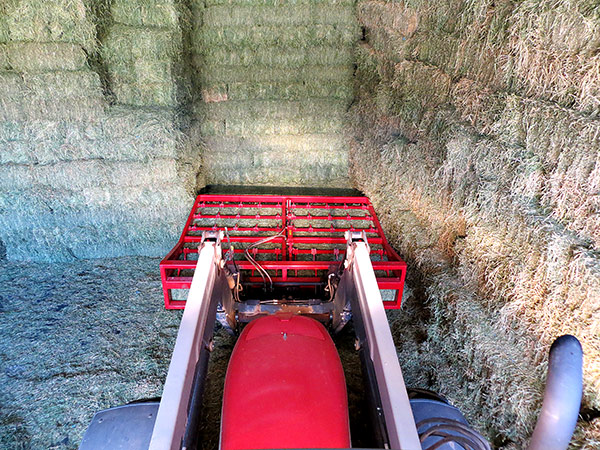

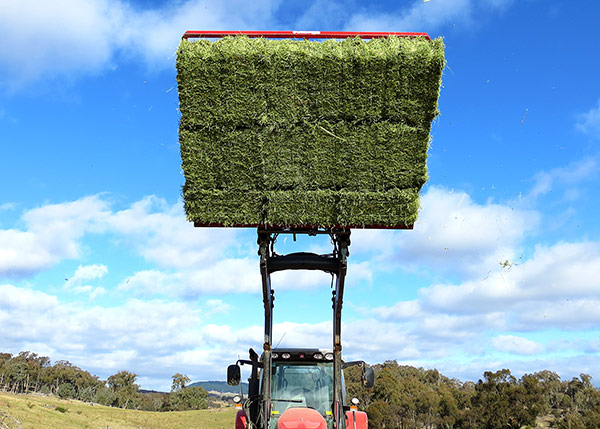

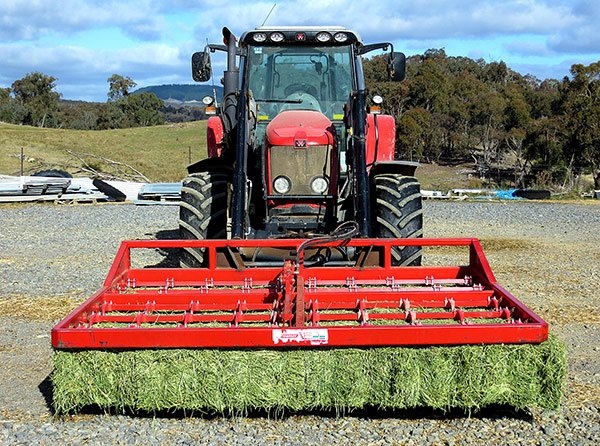

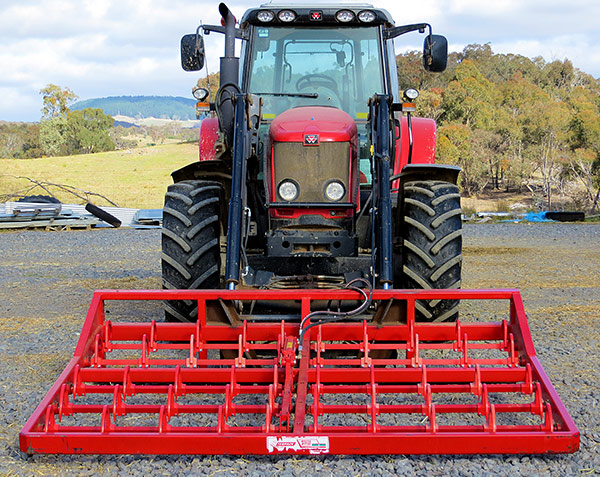

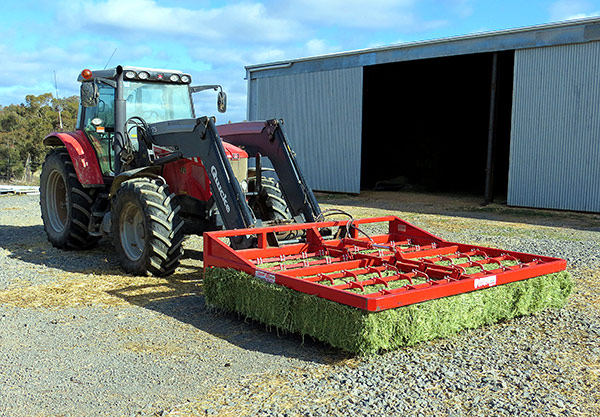

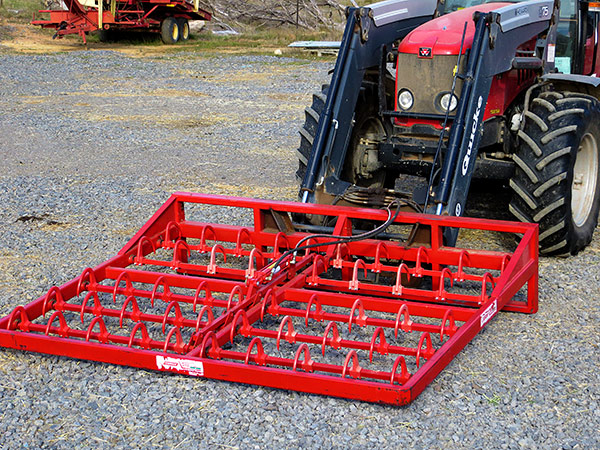

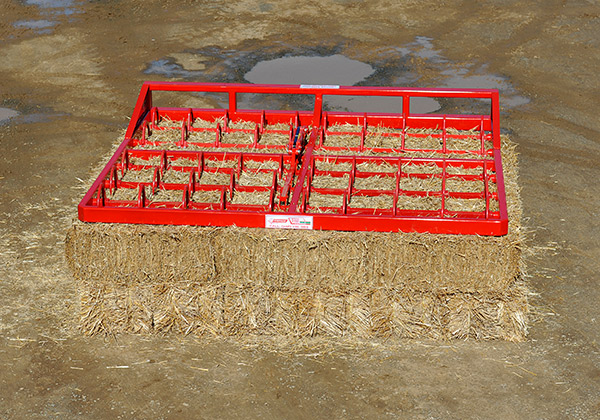

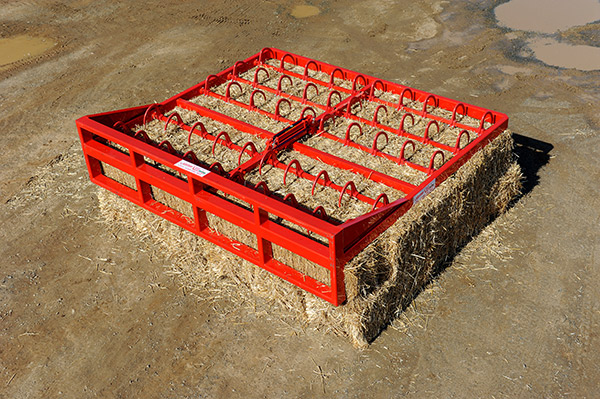

The 15 Bale Grab is built using a robust, heavy duty frame. There are 40 high strength tines for maximum bale coverage. The side guide arm simply locks into position for paddock work via the use of two snap pins, or can simply be removed or locked in the “up” position for shed or warehouse use. The Tenpack 15 Bale Grab is sold without any loader attachments on it. This means that the purchaser can custom fit the grab to a loader, tele-handler or tractor to suit their application. We call this a bare grab.



Dimensions:


Overall width 2850mm (side guide arm down)
Overall length 2450mm
Overall height 610mm (side guide arm down)
Weight  375kgs

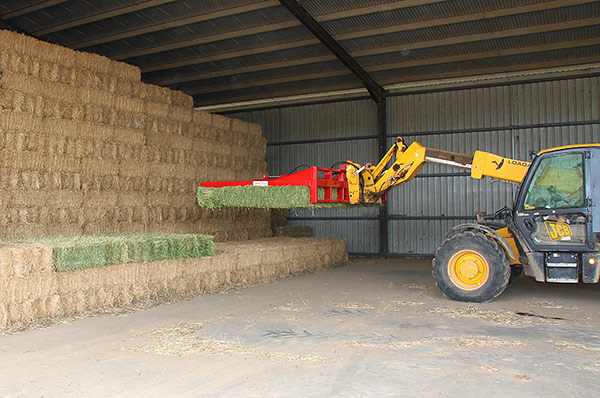

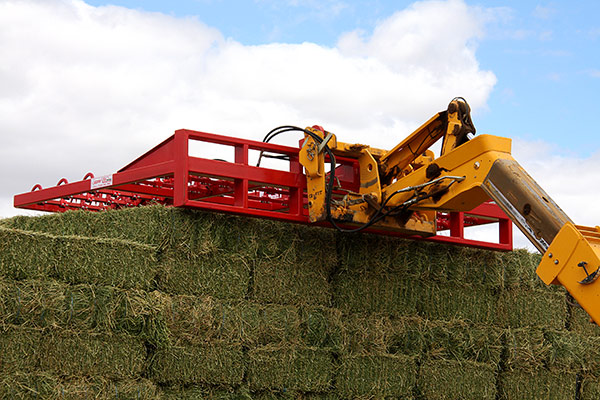

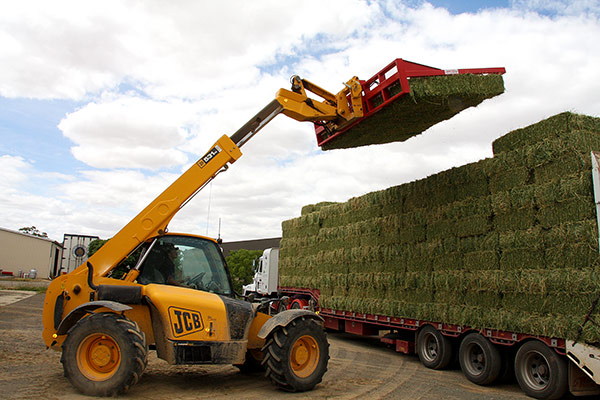

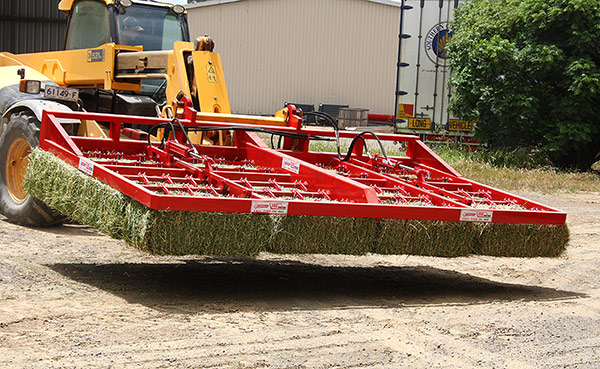

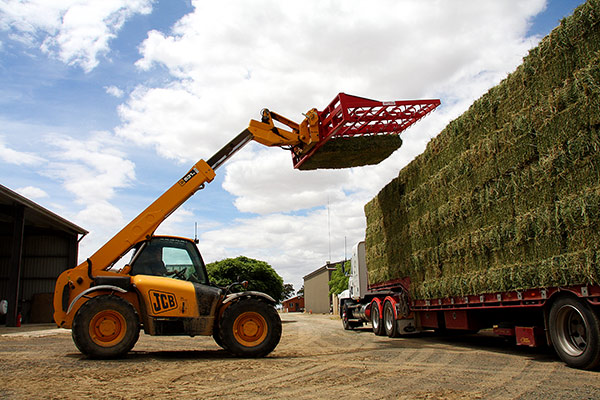

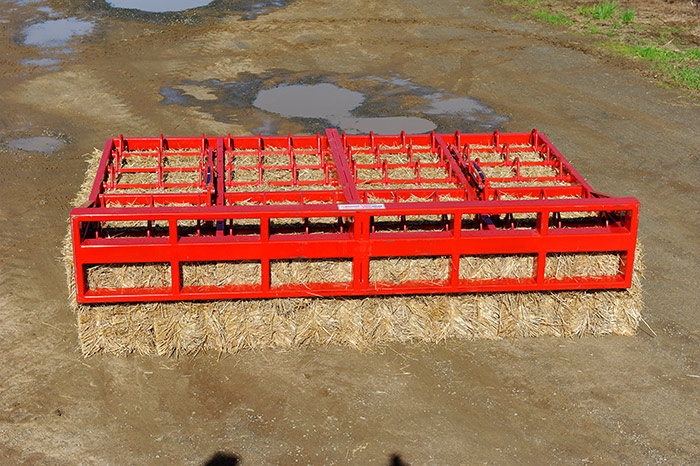

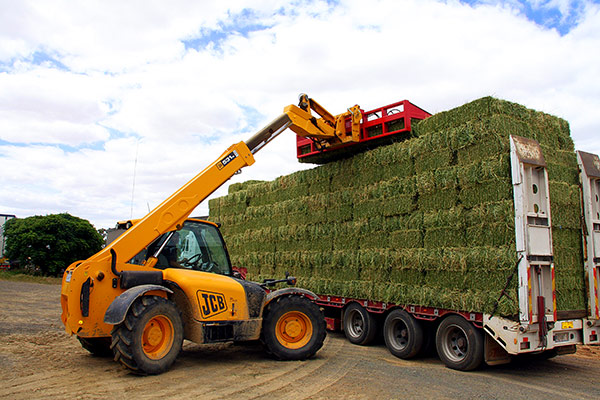

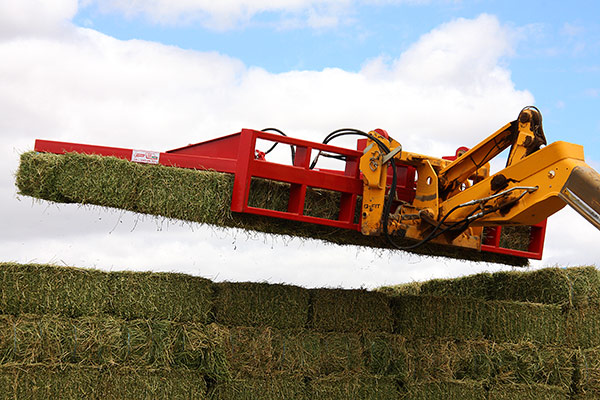

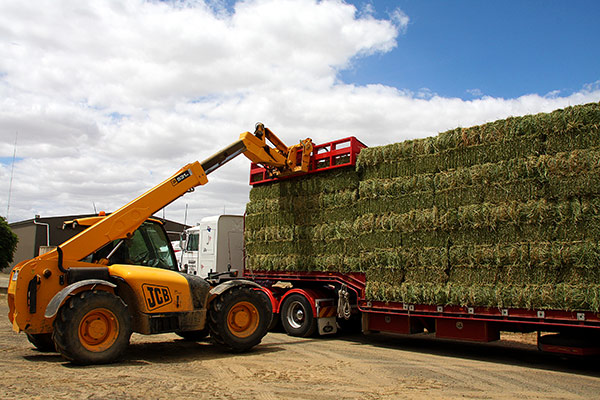

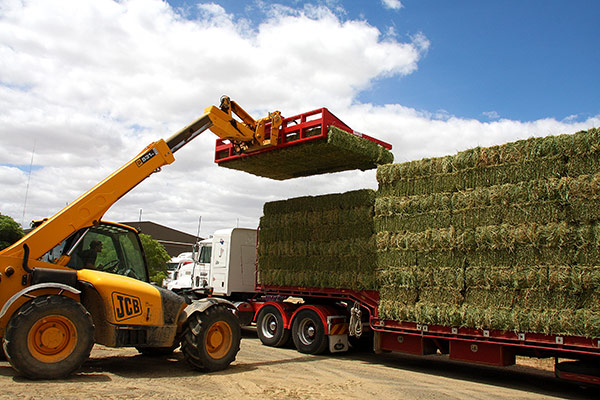

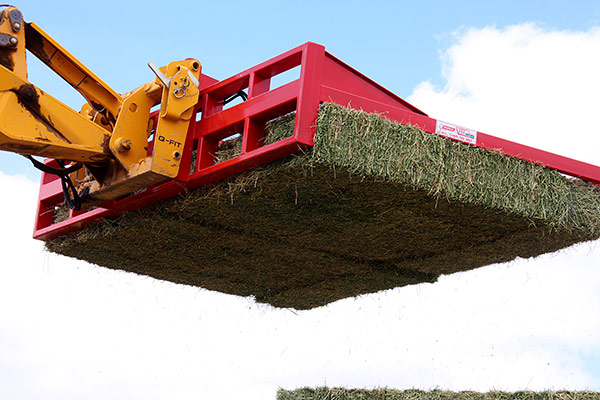

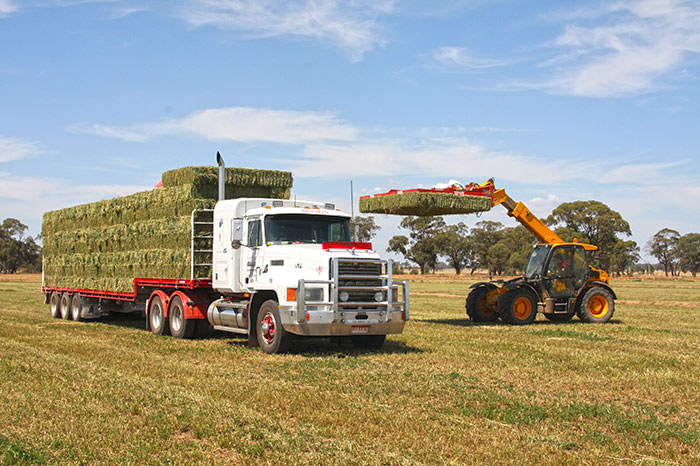

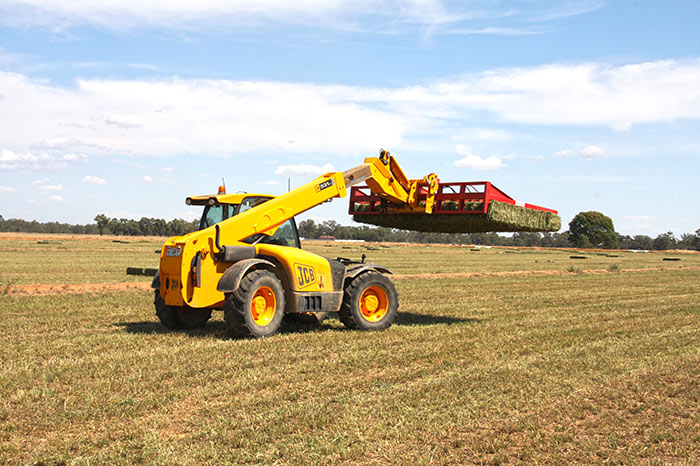

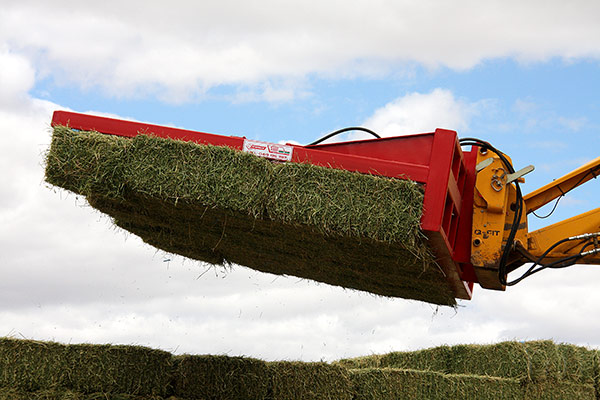

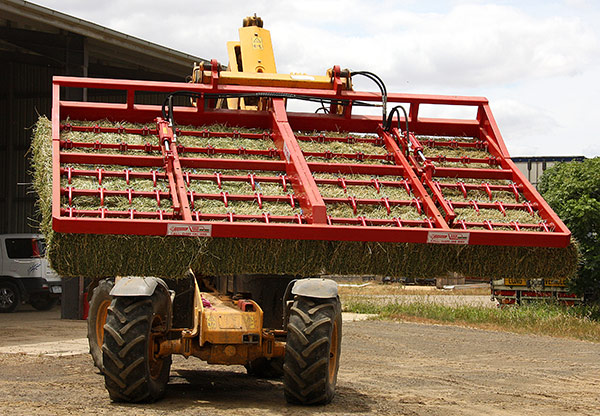

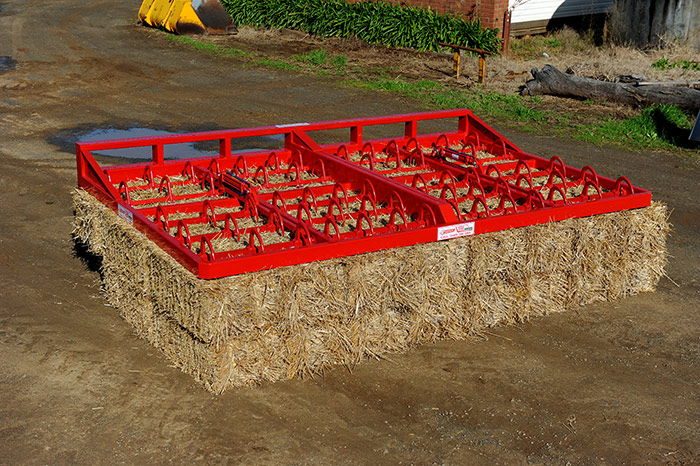

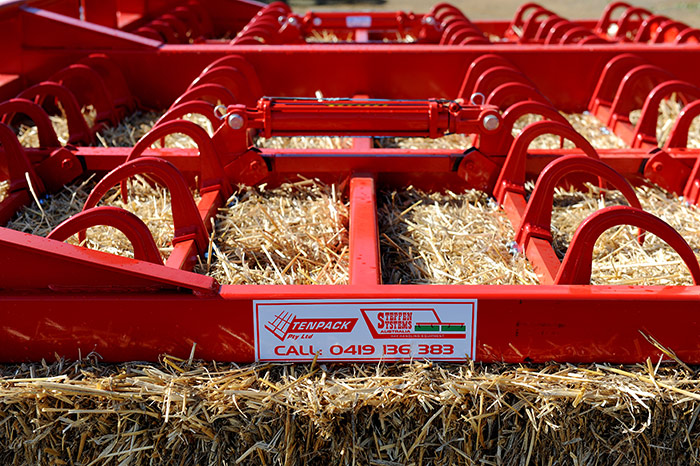

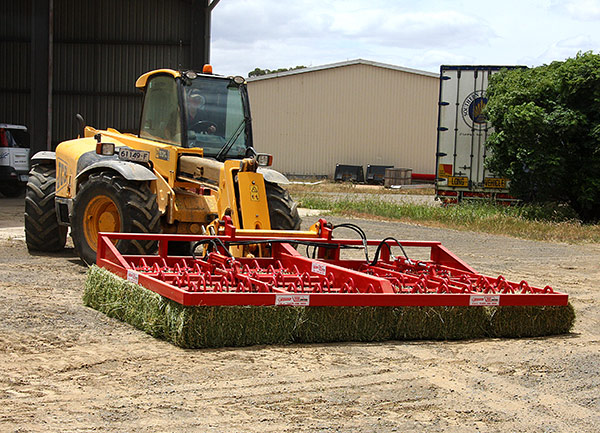

The Tenpack 20 Bale Grab has 100 high strength tines for maximum bale coverage. There is no side guide arm on the 20 Bale Grab due to nature of its design.  The Tenpack 20 Bale Grab is sold without any loader attachments on it. This means that the purchaser can custom fit the grab to a loader, tele-handler or tractor to suit their application. We call this a bare grab.



Dimensions:


Overall width 3800mm
Overall length 2450mm
Overall height 610mm
Weight  660kgs
